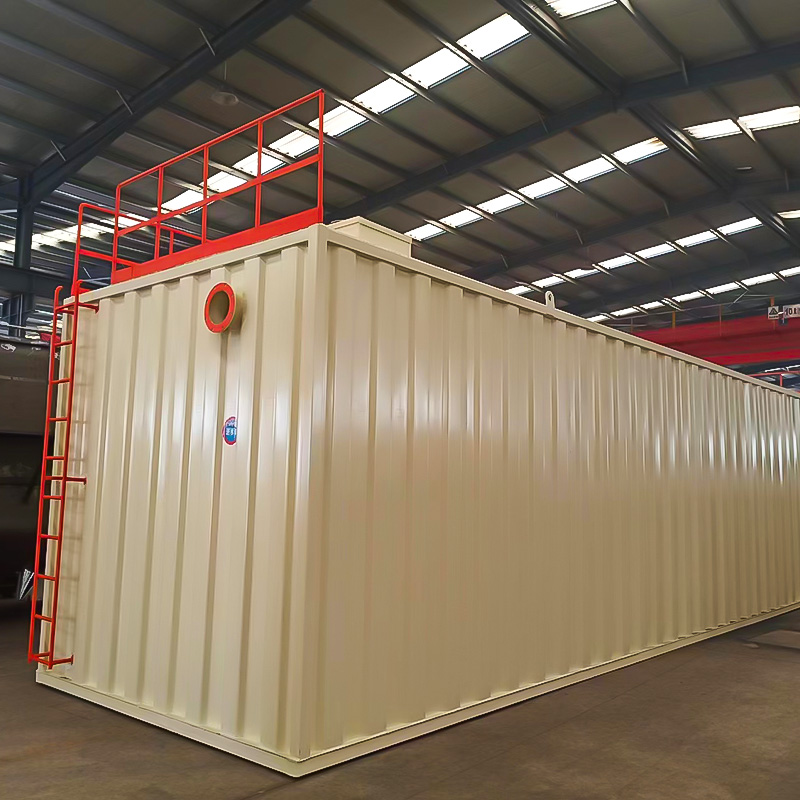

Containerized integrated sewage treatment equipment
The complete set of equipment can be buried underground or placed on the ground. The surface above the equipment can be used for greening or other purposes, without the need for building houses, heating, or insulation. The container integrated equipment has won high praise from users for its beautiful appearance and excellent quality.
Container type integrated sewage treatment equipment is a brand new integrated sewage treatment device launched by our company based on the actual needs of users. Advantages of containerized integrated sewage treatment equipment:
1. The complete set of equipment can be buried underground or placed on the ground. The surface above the equipment can be used for greening or other purposes, without the need for building houses, heating, or insulation. The container integrated equipment has won high praise from users for its beautiful appearance and excellent quality.
2. Container
Integrated sewage treatment equipment

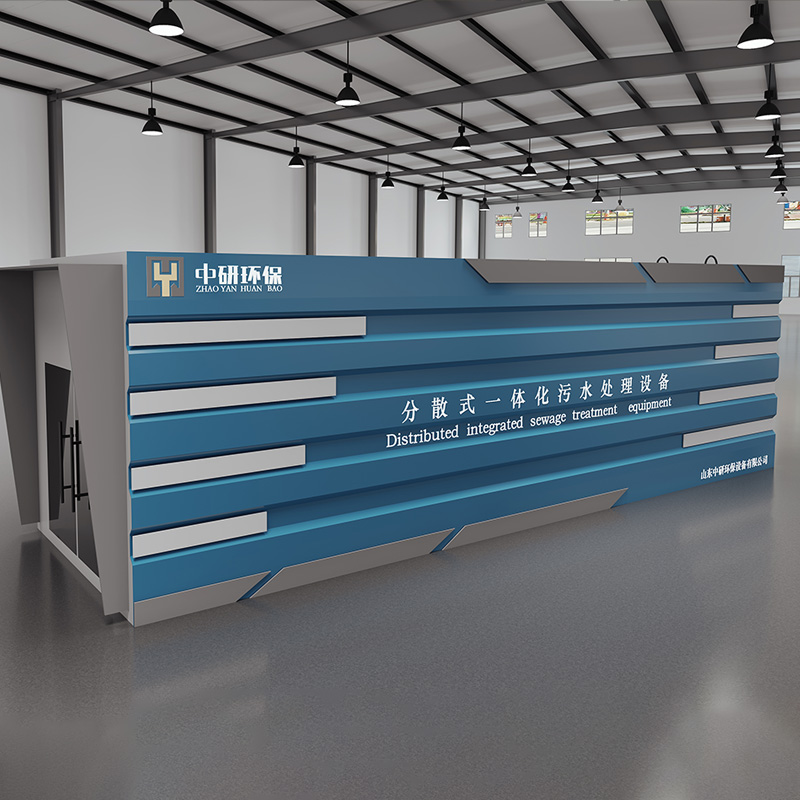

Beautiful and elegant appearance, able to perfectly integrate with the environment.
3. Container integrated sewage treatment equipment can be placed in the urban area, next to the landscape. Does not affect the overall environmental image.
4. Container integrated sewage treatment equipment is suitable for model projects and some environmental governance projects in the south.
5. The biological contact oxidation treatment process adopts the baffle type biological contact oxidation, which has a better treatment effect than the fully mixed or two-stage series fully mixed biological contact oxidation tank. And it has a smaller volume than activated sludge tanks, strong adaptability to water quality, good shock load resistance, stable effluent quality, and will not cause sludge expansion. Combination packing is used in the pool, with a large specific surface area and easy biofilm formation and detachment by microorganisms. Under the same organic load conditions, it has a high removal rate of organic matter and can improve the solubility of oxygen in water.
6. The biochemical tank adopts the biological contact oxidation method, which has a relatively low volume load of the filling material, and the microorganisms are in their own oxidation stage, resulting in low sludge production. It only takes more than six months (180 days) to discharge the sludge (using fecal trucks to suction or dehydrate into sludge cakes for external transportation).
7. The entire equipment processing system is safe and reliable to operate, and generally does not require dedicated management. Only timely maintenance and upkeep of the equipment are needed.
8. The device can be connected to a car to make a mobile integrated sewage treatment equipment.
|
model |
processing capacity （m3/d） |
Device dimensions（M） |
lift pump |
fan |
Nitrification liquid reflux pump |
sludge return pump |
|
ZY-3 |
3.0 |
3.5×1.0×1.5M |
WQ10-7-1.1 |
RT-H41；0.75kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-5 |
5.0 |
4.0×1.5×1.5M |
WQ10-7-1.1 |
RT-H41；0.75kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-10 |
10.0 |
5.0×1.5×1.5M |
WQ10-7-1.1 |
RT-H41；0.75kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-15 |
15.0 |
5.5×1.5×1.5M |
WQ10-7-1.1 |
RT-H41；0.75kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-20 |
20.0 |
5.5×1.5×2.0M |
WQ10-7-1.1 |
RT-H41；1.3kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-30 |
30.0 |
7.5×1.5×2.0M |
WQ10-7-1.1 |
HC-30S；0.55kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-40 |
40.0 |
7.5×2.0×2.0M |
WQ10-7-1.1 |
HC-40S；0.75kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-50 |
50.0 |
7.5×2.0×2.5M |
WQ10-7-1.1 |
HC-40S；0.75kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-60 |
60.0 |
9.0×2.0×2.5M |
WQ10-7-1.1 |
HC-40S；0.75kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-70 |
70.0 |
10.0×2.0×2.5M |
WQ10-7-1.1 |
JZSH-50；1.1kw |
WQ10-7-1.1 |
WQ10-7-1.1 |
|
ZY-80 |
80.0 |
10.5×2.0×2.5M |
WQ10-7-1.1 |
JZSH-50；1.1kw |
WQ15-15-1.5 |
WQ10-7-1.1 |
|
ZY-100 |
100.0 |
8.5×3.0×3.0M |
WQ10-7-1.1 |
JZSH-50；1.5kw |
WQ15-15-1.5 |
WQ10-7-1.1 |
|
ZY-120 |
120.0 |
9.5×3.0×3.0M |
WQ10-7-1.1 |
JZSH-50；2.2kw |
WQ20-15-1.5 |
WQ10-7-1.1 |
|
ZY-150 |
150.0 |
11.5×3.0×3.0M |
WQ10-7-1.1 |
JZSH-50；2.2kw |
WQ25-10-1.5 |
WQ10-7-1.1 |
|
ZY-160 |
160.0 |
12.5×3.0×3.0M |
WQ10-7-1.1 |
JZSH-50；2.2kw |
WQ25-10-1.5 |
WQ10-7-1.1 |
|
ZY-180 |
180.0 |
13.5×3.0×3.0M |
WQ10-7-1.1 |
JZSH-65；3.0kw |
WQ25-10-1.5 |
WQ10-7-1.1 |
|
ZY-200 |
200.0 |
14.5×3.0×3.0M |
WQ15-15-1.5 |
JZSH-65；3.0kw |
WQ25-10-1.5 |
WQ15-15-1.5 |
|
ZY-250 |
250.0 |
（9.5×3.0×3.0M）×2 |
WQ15-15-1.5 |
JZSH-80；4.0kw |
WQ45-9-2.2 |
WQ15-15-1.5 |
|
ZY-300 |
300.0 |
（11.0×3.0×3.0M）×2 |
WQ15-15-1.5 |
JZSH-80；4.0kw |
WQ45-9-2.2 |
WQ15-15-1.5 |
|
ZY-400 |
400.0 |
（14.0×3.0×3.0M）×2 |
WQ25-10-1.5 |
JZSH-80；5.5kw |
WQ60-10-4 |
WQ25-10-1.5 |
|
ZY-500 |
500.0 |
（11.5×3.0×3.0M）×3 |
WQ25-10-1.5 |
JZSH-100；7.5kw |
WQ60-10-4 |
WQ25-10-1.5 |
|
ZY-800 |
800.0 |
（13.5×3.0×3.0M）×4 |
WQ45-9-2.2 |
JZSH-100；11kw |
WQ100-10-7.5 |
WQ45-9-2.2 |
|
ZY-1000 |
1000.0 |
（13.5×3.0×3.0M）×5 |
WQ60-10-4 |
JZSH-125；11kw |
WQ100-10-7.5 |
WQ60-10-4 |
