Equipment Introduction:

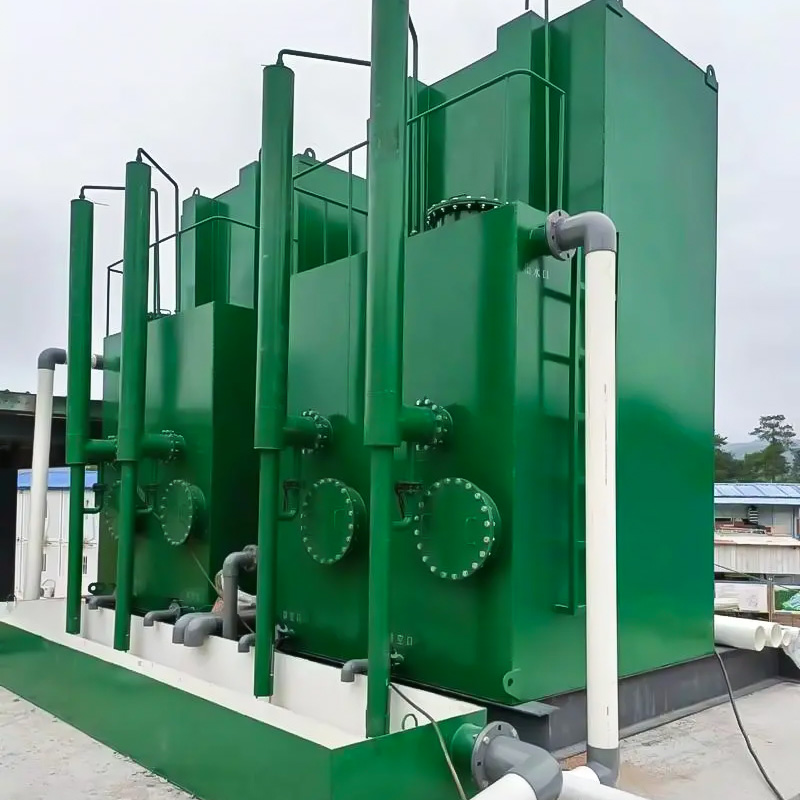

The integrated water purification system combines the key technologies of flocculation, sedimentation, effluent discharge, backwashing, and water collection and filtration into a single, fully automated unit that requires no manual operation. It serves as a crucial component for implementing automated water treatment plant management. When paired with the automatic dosing system and disinfection equipment manufactured by our company, this system can be configured into a comprehensive water purification station (plant) with full functionality.

This series of water purification systems offers a wide range of applications, excellent treatment performance, and superior effluent water quality, while also featuring low water consumption, reduced energy usage, compact footprint, and significant savings in electricity, water, and labor costs – making it a new, energy-efficient product solution that eliminates the need for auxiliary pumps and facilities.

The integrated water purification system is suitable for water quality treatment in water supply projects utilizing surface water sources (such as rivers, streams, lakes, and reservoirs), for reclaimed water reuse, as well as for the purification of industrial wastewater—including tailings water from coal mines, coal washing water, water used in bathhouses and swimming pools, car wash areas, paper manufacturing, textile dyeing and printing, electroplating, and other industrial applications.

plant parameter:

model	L ×B×H (Length × Width × Height)	DN1 (water inlet)	DN2 (Clear water pipe)	DN3 (mud pipe)	DN4 (blow-off pipe)	DN5 (Counterflow Pipe)	pipeline mixer	PAC/PAM dosing (2 sets)	ClO₂ (Optional residual chlorine meter)
ZYJS-5	2000×1500×4500	DN50	DN50	DN80	DN80	DN80	DN80*1m	200L tank + 220V stirring system + 15L pump	50g
ZYJS-10	2000×2500×4500	DN65	DN65	DN100	DN100	DN100	DN100*1m	200L tank + 220V stirring system + 15L pump	50g
ZYJS-20	4000×3000×4500	DN80	DN80	DN150	DN150	2×DN100	DN100*1m	200L tank + 220V stirring system + 15L pump	50g
ZYJS-30	4500×3000×4500	DN100	DN100	DN150	DN150	2×DN150	DN100*1m	300L tank + 220V mixing system + 50L pump	50g
ZYJS-40	5000×4000×4500	DN150	DN150	DN150	DN150	3×DN200	DN150*1.5m	500L tank + 380V stirring system + 60L pump	50g
ZYJS-50	5500×4500×4500	DN150	DN150	DN150	DN150	3×DN200	DN150*1.5m	500L tank + 380V stirring system + 60L pump	100g
ZYJS-80	6500×4500×4500	DN150	DN150	DN150	DN150	3×DN200	DN150*1.5m	1000L tank + 380V stirring system + 100L pump	200g
ZYJS-100	8000×4500×4500	DN200	DN200	DN200	DN300	4×DN250	DN200*2m	1000L tank + 380V stirring system + 100L pump	200g
ZYJS-130	10000×4500×4500	DN200	DN250	DN200	DN300	4×DN250	DN200*2m	1000L tank + 380V stirring system + 130L pump	300g
ZYJS-150	12000×4500×4500	DN250	DN300	DN200	DN350	6×DN300	DN250*2m	1000L tank + 380V stirring system + 130L pump	300g
ZYJS-200	15000×4500×4500	DN300	DN400	DN200	DN400	6×DN350	DN300*3m	1000L tank + 380V stirring system + 130L pump	400g
