Ultraviolet sterilizer - Zeyan Zongheng (Shandong) Environmental Technology Co., Ltd.

Detailed Info

Equipment Overview:

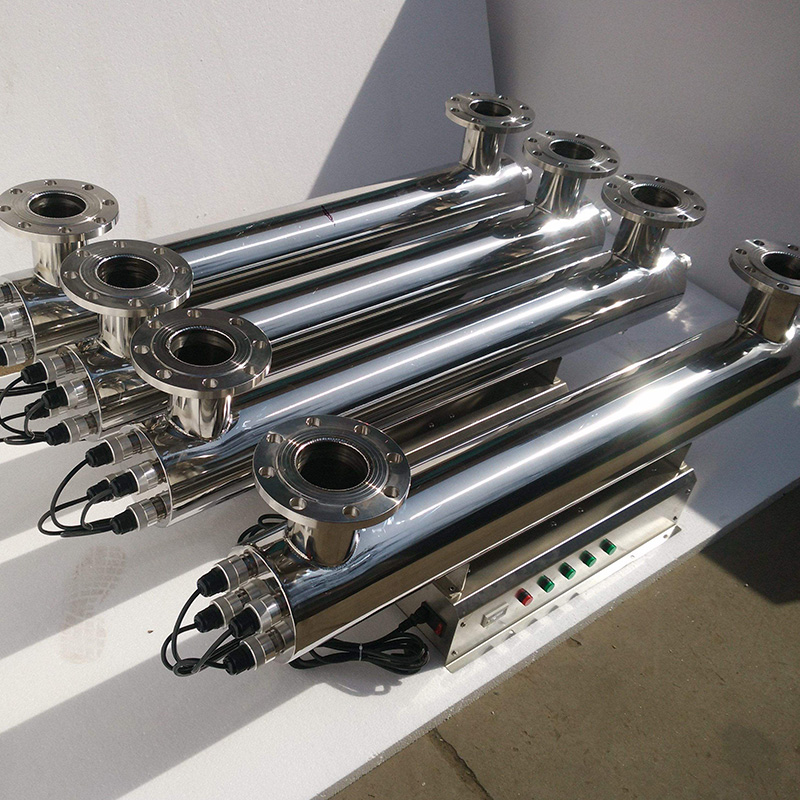

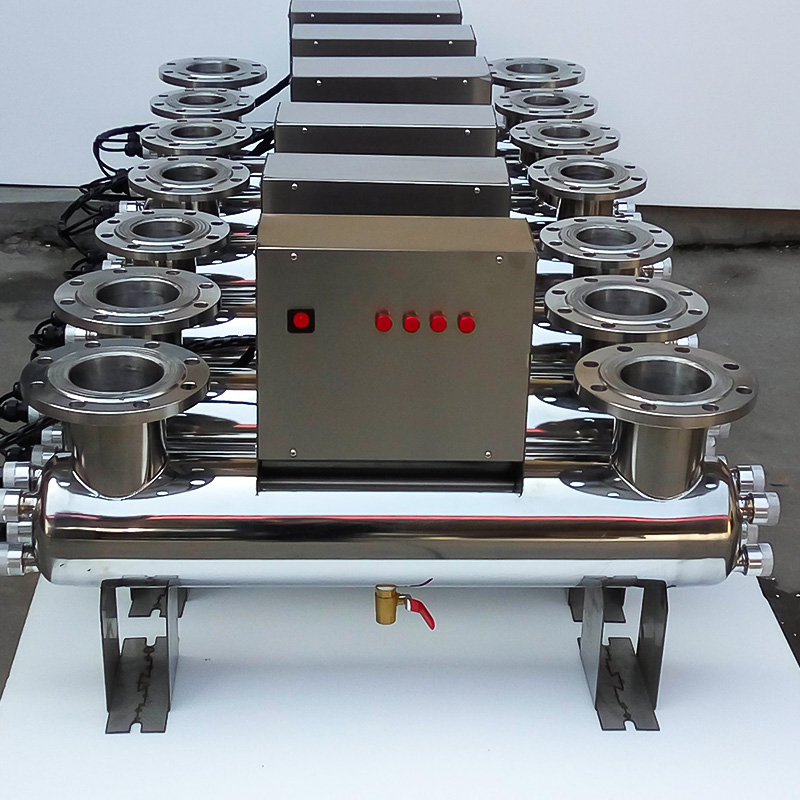

An ultraviolet sterilizer is a modern water disinfection and sterilization device that utilizes ultraviolet light emitted by UV lamps to irradiate water, thereby eliminating bacteria, viruses, and other microorganisms present in the water.

Ultraviolet (UV) disinfection, as a physical disinfection method, is one of the most widely used wastewater disinfection technologies today. Since the discovery of the disinfectant and bactericidal properties of ultraviolet radiation in the last century, the market share of UV disinfection systems in the disinfection sector has increased significantly due to rapid technological advancements. The disinfection principle of UV disinfection systems relies on the bactericidal effect of ultraviolet radiation.

Equipment Features:

1. Rapidly and effectively eliminates various bacteria, viruses, and other microorganisms;

2. Through photolytic degradation, it effectively breaks down chlorides in water;

3. Simple operation and easy maintenance;

4. Small footprint, high water treatment capacity;

5. Pollution-free and highly environmentally friendly; does not cause any toxic side effects;

6. Low investment cost, low operating costs, and easy equipment installation;

7. A unique inner-wall treatment process, designed based on optical principles, enables the maximum utilization of ultraviolet radiation within the cavity, thereby significantly enhancing the sterilization efficacy.

plant parameter:

model	handling capacity （T/H）	power （W）	Number of lamp tubes *(W Branch)**	Import/Export Diameter （mm）	outline dimension （mm）
ZYUV-15	0.5-1	15	15W*1	DN15 external thread	φ50*450
ZYUV-30	1-2	30	30W*1	DN20 external thread	φ50*450
ZYUV-40	2-3	40	40W*1	DN25 external thread	Φ63*950
ZYUV-80	4-5	80	80W*1	DN32 external thread	Φ63*950
ZYUV-120	6-8	120	120W*1	DN40 external thread	φ75*1200
ZYUV-160	8-10	160	80W*2	DN50 flange	Φ100*950
ZYUV-240	12-15	240	80W*3	DN65 flange	Φ133*950
ZYUV-240	12-15	240	120W*2	DN65 flange	Φ89*1200
ZYUV-320	16-25	320	80W*4	DN80 flange	Φ133*950
ZYUV-360	18-30	360	120W*3	DN80 flange	Φ133*1200
ZYUV-400	20-35	400	80W*5	DN80 flange	Φ133*950
ZYUV-480	20-40	480	80W*6	DN100 flange	Φ159*950
ZYUV-480	20-40	480	120W*4	DN100 flange	Φ133*1200
ZYUV-600	30-50	600	120W*5	DN125 flange	Φ159*1200
ZYUV-720	36-60	720	120W*6	DN125 flange	Φ168*1200
