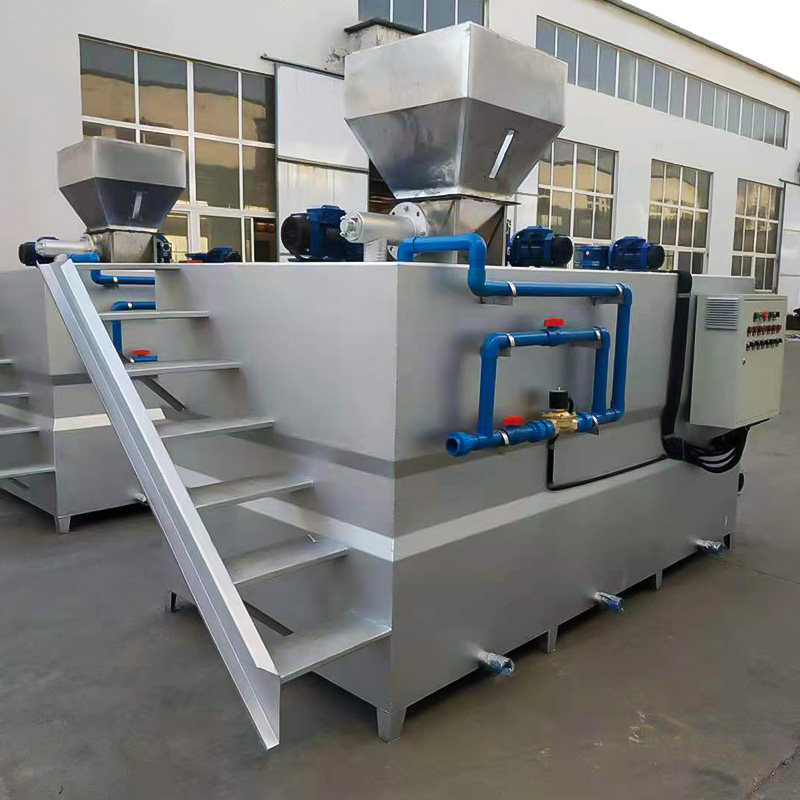

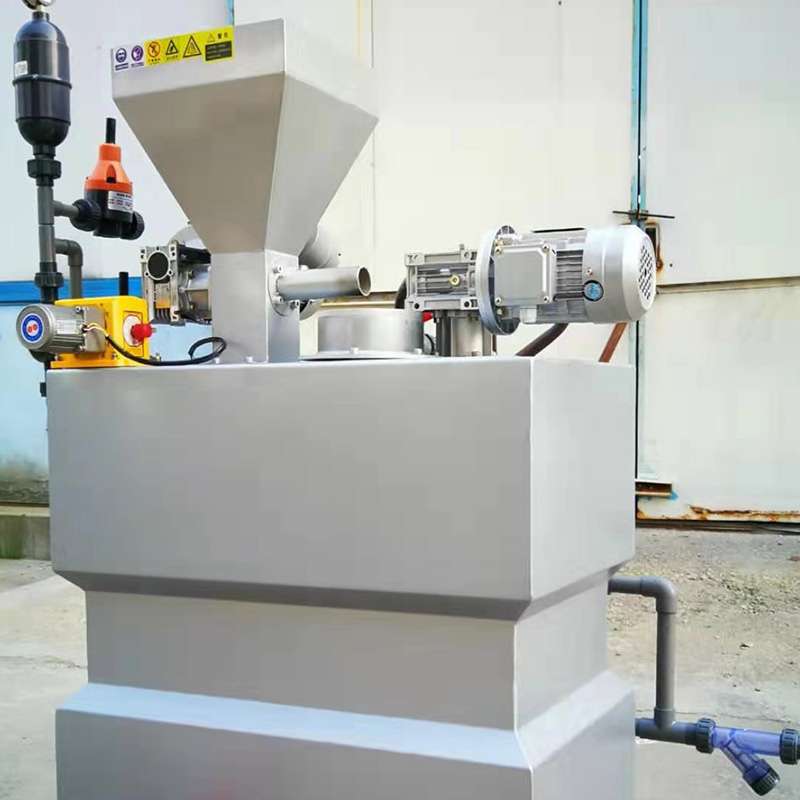

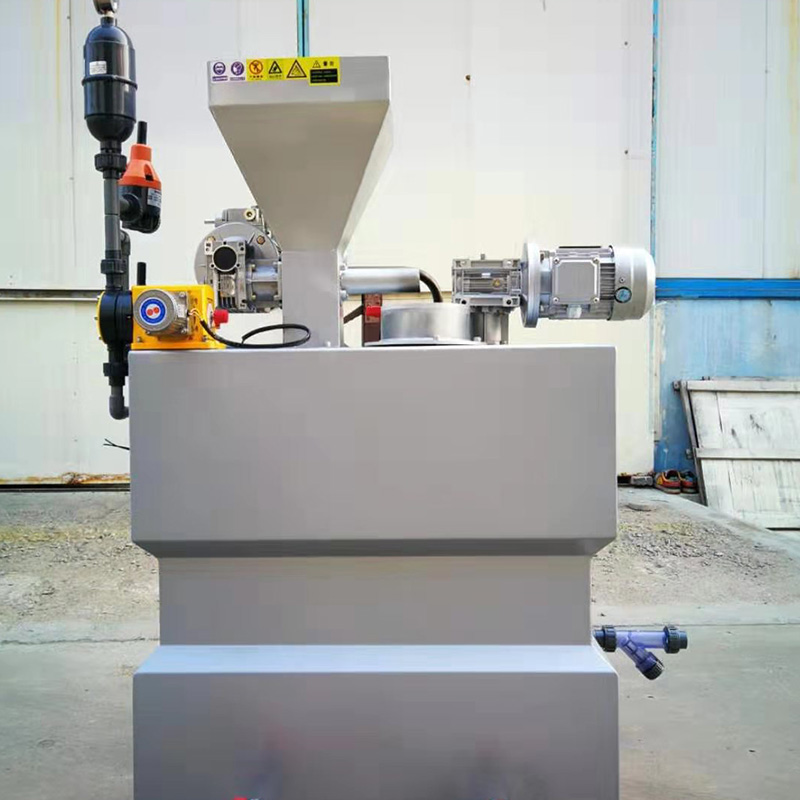

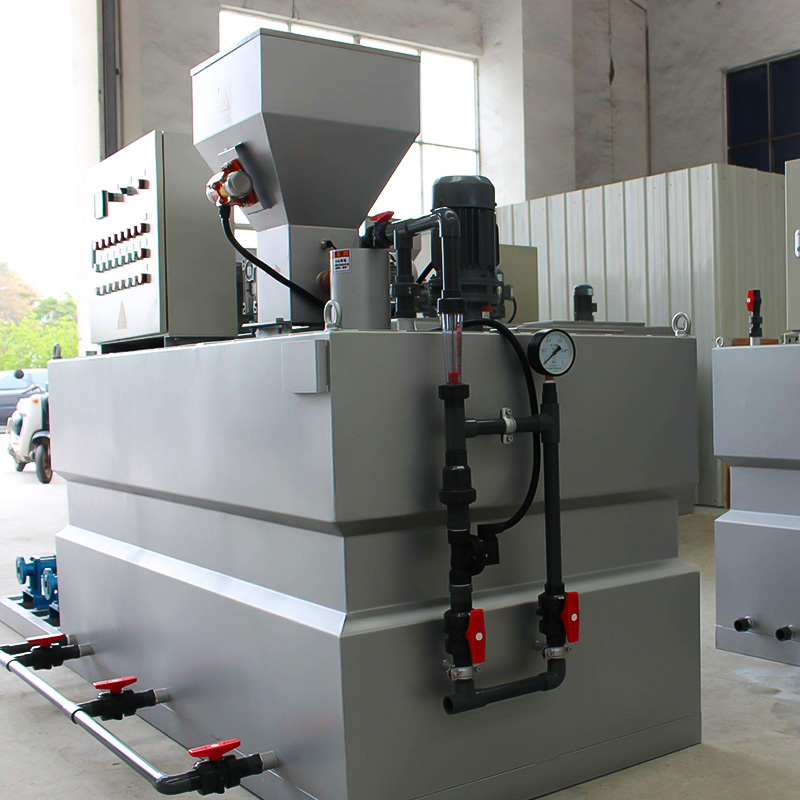

Three-compartment dosing device - Zeyan Zongheng (Shandong) Environmental Technology Co., Ltd.

Detailed Info

I. Product Introduction

The PAM dosing unit is an intelligent, fully automatic, continuous, integrated system for the preparation and dosing of flocculants; the typical solution concentration ranges from 0.1% to 0.3%.

The PAM dosing unit consists of a water supply system, a dry powder dosing system, a dissolution and maturation system, a control system, and a liquid dosing system.

This device is a fully automated continuous mixing and dosing system for powdered polymer flocculants. The dry powder flocculant is fed into a pre-mixer via a screw feeder to undergo preliminary mixing with clean water; the moist material is then transferred to a dilution tank for dilution and preparation to the required concentration.

The prepared solution flows from the preparation tank through the maturation tank before entering the storage tank; when the liquid level in the storage tank reaches the high level, the preparation process stops automatically; when the solution level drops to the medium level, the preparation process restarts automatically. Both the preparation tank and the maturation tank are equipped with multi-blade agitators to ensure thorough dilution and maturation of the flocculant.

II. Equipment Specifications

model	SQB-500	SQB-1000	SQB-1500	SQB-2000	SQB-3000
preparative capacibility	500L/h	1000L/h	1500L/h	2000L/h	3000L/h
Hopper capacity	50kg	50kg	50-80kg	80kg	100kg
Dry powder dosage: 0.2%	1kg/h	2kg/h	2kg/h	4kg/h	6kg/h
Rotary level gauge	30w	30w	30w	30w	30w
Material bin agitator	45w	45w	45w	45w	45w
calorifier	100w	100w	100w	100w	150w
Infiltration Mixer	SQ-160mm	SQ-160mm	SQ-160mm	SQ-160mm	SQ-160mm
Variable-frequency conveyor	0.37kw	0.37kw	0.37kw	0.55kw	0.55kw
Water supply flowmeter	0.3-1.5m3/h	0.6-3.0m3/h	0.8-4.0m3/h	0.6-6.0m3/h	1.0-10.0m3/h
Water supply pipe solenoid valve	DN20	DN20	DN20	DN25	DN32
Water outlet pipe diameter	DN25	DN25	DN25	DN40	DN50
Case dimensions (L×W×H)	1.0×0.8×0.9m	2.0×1.0×0.9m	2.0×1.0×1.12m	2.4×1.22×1.12m	3.0×1.22×1.12m
agitator	3×0.55kw	3×0.75kw	3×0.75kw	3×0.75kw-1.1kw	3×1.1kw-1.5kw
aggregate capacity	2.2kw	3.0kw	3kw	4-5kw	4-5kw

Hydrocyclone dewatering machine

Aerobic biological filter

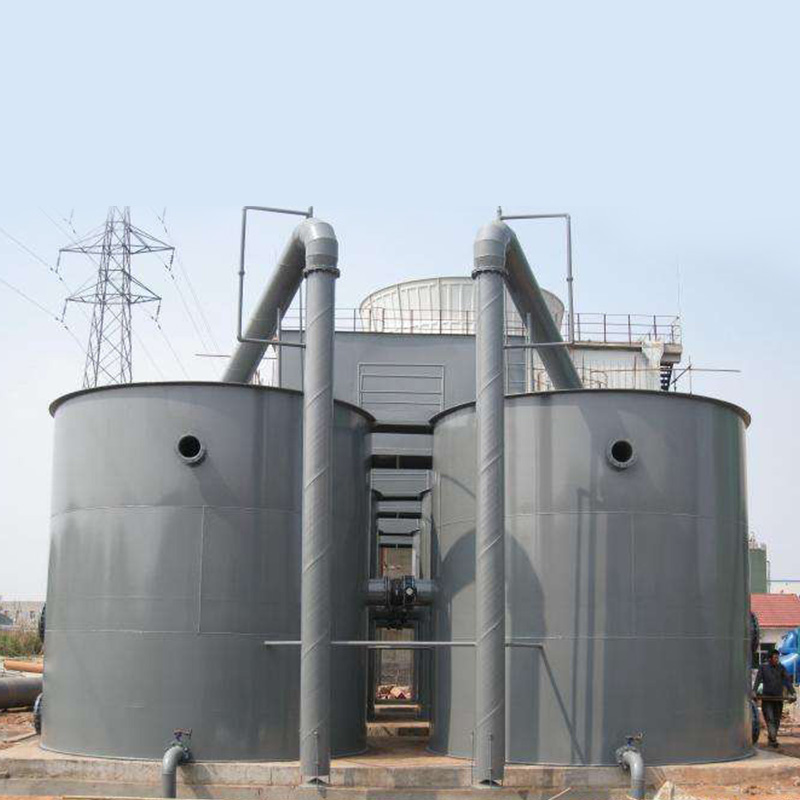

Valveless filter
