I. Product Introduction

The PAM dosing unit is an intelligent, fully automated, continuous, integrated system for flocculant preparation and dosing; the typical solution concentration ranges from 0.1% to 0.3%.

The PAM dosing unit consists of a water supply system, a dry powder dosing system, a dissolution and maturation system, a control system, and a liquid dosing system.

This device is a fully automated continuous mixing and dosing system for powdered polymer flocculants. The dry powder flocculant is fed into a pre-mixer via a screw feeder to undergo pre-mixing with clean water; the moist material is then transferred to a dilution tank for dilution and preparation to the required concentration.

The prepared solution flows from the preparation tank through the maturation tank before entering the storage tank; when the liquid level in the storage tank reaches the high level, the preparation process stops automatically; when the solution level drops to the medium level, the preparation process restarts automatically. Both the preparation tank and the maturation tank are equipped with multi-blade agitators to ensure thorough dilution and maturation of the flocculant.

II. Equipment Specifications

model	SQB-500	SQB-1000	SQB-1500	SQB-2000	SQB-3000
preparative capacibility	500L/h	1000L/h	1500L/h	2000L/h	3000L/h
Hopper capacity	50kg	50kg	50-80kg	80kg	100kg
Dry powder dosage: 0.2%	1kg/h	2kg/h	2kg/h	4kg/h	6kg/h
Rotary level gauge	30w	30w	30w	30w	30w
Material Bin Vibrator	45w	45w	45w	45w	45w
calorifier	100w	100w	100w	100w	150w
Infiltration Mixer	SQ-160mm	SQ-160mm	SQ-160mm	SQ-160mm	SQ-160mm
Variable-frequency conveyor	0.37kw	0.37kw	0.37kw	0.55kw	0.55kw
Water supply flowmeter	0.3-1.5m3/h	0.6-3.0m3/h	0.8-4.0m3/h	0.6-6.0m3/h	1.0-10.0m3/h
Water supply pipe solenoid valve	DN20	DN20	DN20	DN25	DN32
Water outlet pipe diameter	DN25	DN25	DN25	DN40	DN50
Case dimensions (L×W×H)	1.0×0.8×0.9m	2.0×1.0×0.9m	2.0×1.0×1.12m	2.4×1.22×1.12m	3.0×1.22×1.12m
agitator	3×0.55kw	3×0.75kw	3×0.75kw	3×0.75kw-1.1kw	3×1.1kw-1.5kw
aggregate capacity	2.2kw	3.0kw	3kw	4-5kw	4-5kw

Ordinary dosing device

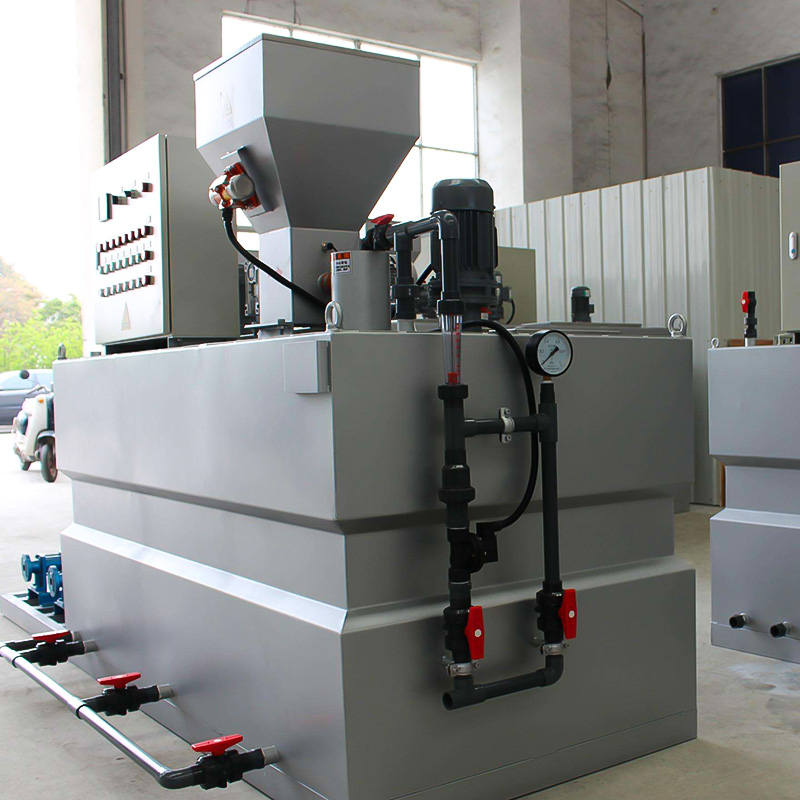

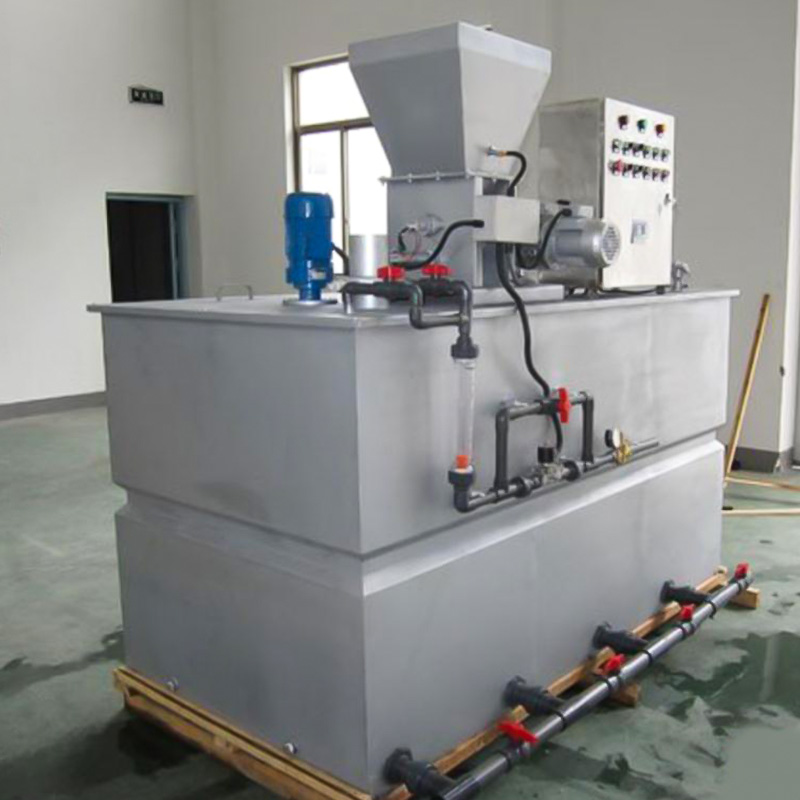

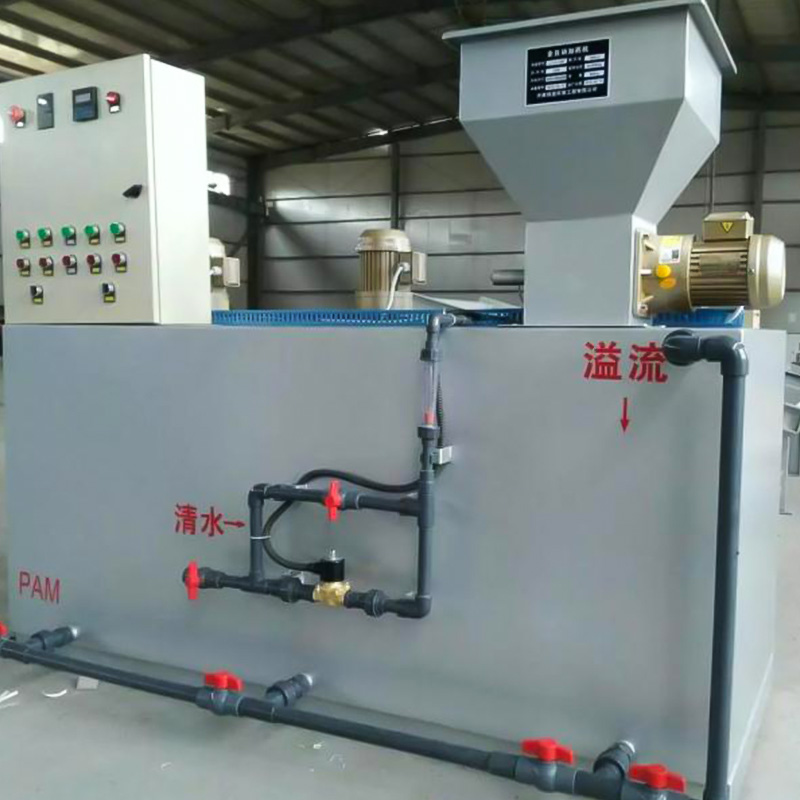

Three-box integrated dosing device
