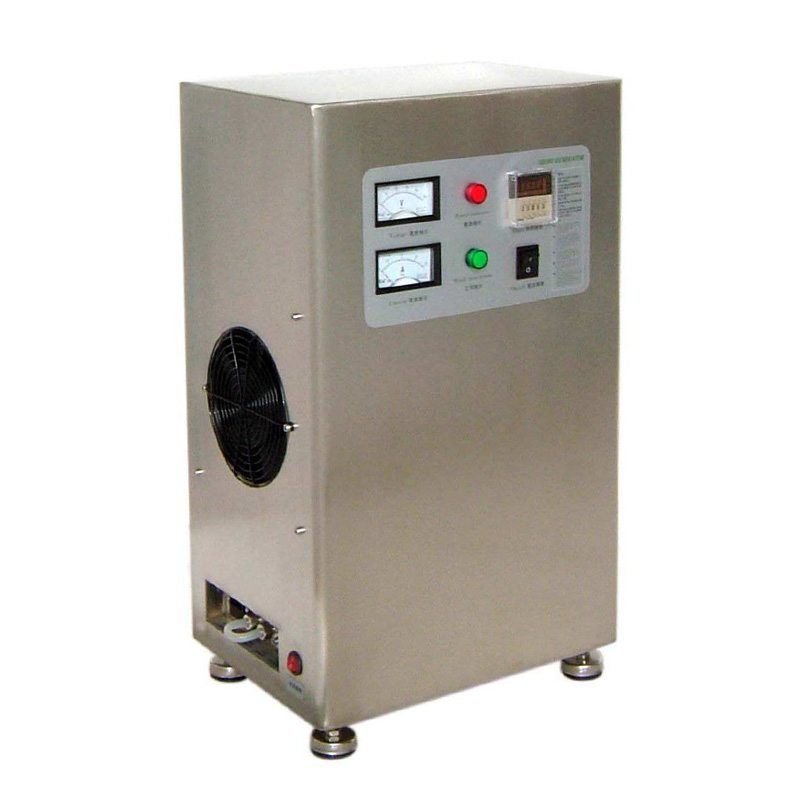

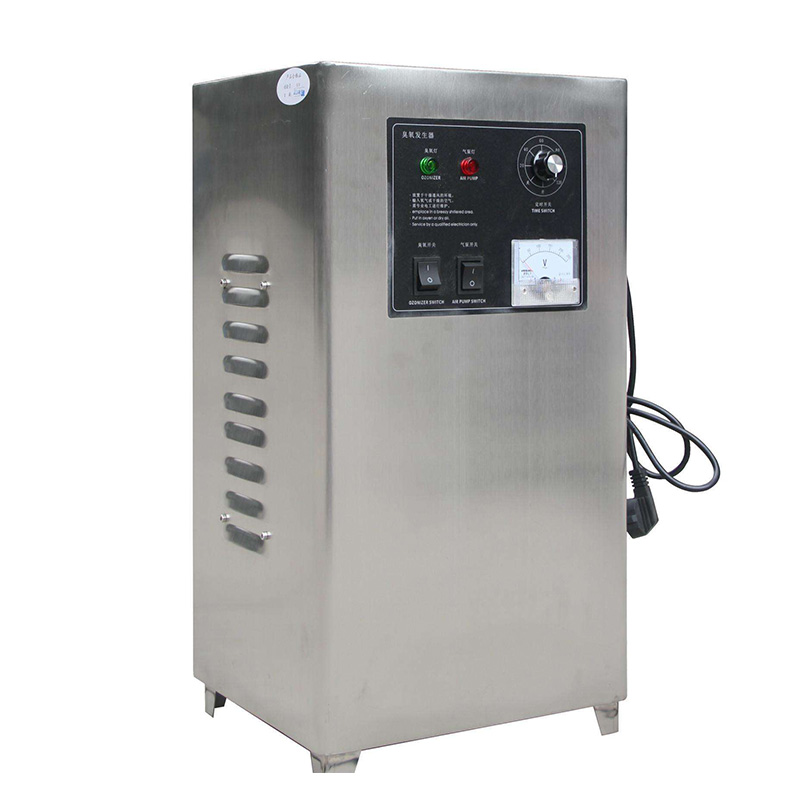

Ozone generator
Ozone generator
Equipment Overview
An ozone generator is a device used to produce ozone gas (O₃). Ozone decomposes readily and cannot be stored; therefore, it must be generated and used on-site (short-term storage may be permitted under special circumstances). As a result, ozone generators are required in all applications where ozone is needed. These generators are widely used in fields such as drinking water treatment, wastewater treatment, industrial oxidation, food processing and preservation, pharmaceutical synthesis, and space sterilization. The ozone gas produced by an ozone generator can be used directly or, through a mixing device, incorporated into chemical reactions via liquid mixing.
Equipment Principle
The active oxygen released by an ozone generator can naturally decompose into ordinary oxygen in the environment – this represents a unique advantage of using active oxygen as a disinfectant and sterilizing agent. Active oxygen is generated from the oxygen present in the air; during the disinfection and oxidation process, any excess oxygen atoms (O) recombine after 30 minutes into molecular oxygen (O₂), leaving no residual substances behind. This solves the problem of secondary pollution caused by residual chemicals during disinfection and eliminates the need for additional cleaning after the disinfection process is complete.
applied range
1. Water disinfection and purification
2. Sewage disinfection at wastewater treatment plants; reclaimed water reuse
3. Oxidative bleaching process in the paper, carbon black, and fragrance industries
4. Oxidative treatment and decolorization of dyeing and printing wastewater
5. COD degradation, oxidation, and decolorization of wastewater from the chemical and pharmaceutical industries
6. Purified water treatment
7. Swimming pool water circulation treatment and disinfection/ purification
8. Disinfection and sterilization, air purification, etc., for food products, pharmaceuticals, hotels and guesthouses, livestock farming, edible fungi, and all other locations requiring disinfection;
plant parameter
|
Air-source ozone generator |
|||||
|
type |
Output (g) |
Dimensions (including foot height) cm |
power(W) |
cooling-down method |
chassis |
|
ZY-001 |
3g |
32*25*52 |
100 |
forced air cooling |
vertical |
|
ZY-001 |
5g |
32*25*52 |
120 |
forced air cooling |
vertical |
|
ZY-004 |
3g |
32*25*60 |
100 |
forced air cooling |
mobile model |
|
ZY-004 |
5g |
32*25*60 |
120 |
forced air cooling |
mobile model |
|
ZY-002 |
2g |
23*18*42 |
60 |
forced air cooling |
portable |
|
ZY-002 |
3g |
23*18*42 |
80 |
forced air cooling |
portable |
|
ZY-005 |
10g |
32*26*58 |
180 |
forced air cooling |
vertical |
|
ZY-006 |
15g |
40*30*71 |
300 |
forced air cooling |
vertical |
|
ZY-003 |
20g |
40*30*83 |
320 |
Air cooling + Water cooling |
vertical |
|
ZY-003 |
30g |
40*30*95 |
350 |
Air cooling + Water cooling |
vertical |
|
ZY-009 |
3g |
45*16*22 |
80 |
forced air cooling |
wall mounting type |
|
ZY-009 |
5g |
45*16*22 |
120 |
forced air cooling |
wall mounting type |
|
ZY-009 |
10g |
58*26*28 |
180 |
forced air cooling |
wall mounting type |
|
ZY-015 |
40g |
55*40*85 |
480 |
Air cooling + Water cooling |
vertical |
|
ZY-015 |
50g |
55*40*100 |
530 |
Air cooling + Water cooling |
vertical |
|
ZY-015 |
60g |
55*40*113 |
680 |
Air cooling + Water cooling |
vertical |
|
ZY-016 |
80g |
55*40*124 |
1020 |
Air cooling + Water cooling |
vertical |
|
ZY-017 |
100g |
55*40*133 |
1140 |
Air cooling + Water cooling |
vertical |
|
ZY-018 |
150g |
60*50*143 |
2000 |
Air cooling + Water cooling |
vertical |
|
ZY-018 |
200g |
60*50*143 |
2300 |
Air cooling + Water cooling |
split type |
|
Oxygen Source Ozone Generator Parameter Table |
||||||
|
type |
Output (g) |
Dimensions (including foot height) cm |
power(W) |
characteristic |
cooling-down method |
remarks |
|
YT-015 |
10g |
55*40*73 |
680 |
Integrated oxygen generation system |
forced air cooling |
integrated |
|
YT-016 |
15g |
55*40*88 |
780 |
Integrated oxygen generation system |
forced air cooling |
integrated |
|
YT-016 |
20g |
55*40*88 |
850 |
Integrated oxygen generation system |
Air cooling + Water cooling |
integrated |
|
YT-016 |
30g |
55*40*103 |
950 |
Integrated oxygen generation system |
Air cooling + Water cooling |
integrated |
|
YT-016 |
40g |
55*40*103 |
1100 |
Integrated oxygen generation system |
Air cooling + Water cooling |
integrated |
|
YT-017 |
50g |
55*40*133 |
1200 |
Integrated oxygen generation system |
Air cooling + Water cooling |
integrated |
|
YT-017 |
60g |
55*40*133 |
1300 |
Integrated oxygen generation system |
Air cooling + Water cooling |
integrated |
|
YT-017 |
80g |
55*40*138 |
1750 |
Integrated oxygen generation system |
Air cooling + Water cooling |
integrated |
|
YT-018 |
100g |
60*50*143 |
2650 |
Integrated oxygen generation system |
Air cooling + Water cooling |
integrated |
|
YT-018 |
150g |
70*75*143 |
3200 |
Integrated oxygen generation system |
Air cooling + Water cooling |
integrated |
|
YT-019 |
200g |
70*75*143 |
3600 |
Integrated oxygen generation system |
Air cooling + Water cooling |
Integrated design Split design |
