Summary of the equipment

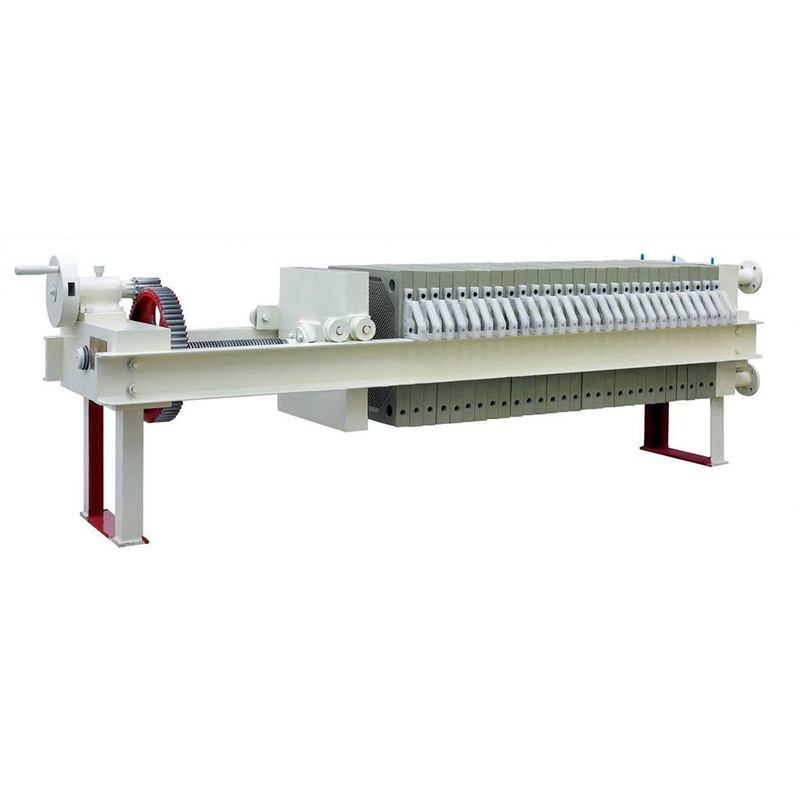

The plate-and-frame press filter is an intermittent solid-liquid separation equipment. The filter chamber is composed by filter plates and filter frames. Under the pressure of the material feeding pump, the material liquid is pumped into the filter chambers and the solid and liquid are separated with the filter medium. It is widely used in the sewage treatment in the industries such as chemical engineering, dyeing, petroleum, ceramics, pharmacy, sugaring, food processing, starch production, maltose production, paint production and metallurgy. It has advantages of good effect of separation, wide scope of application, easy operation and saved investment. It has incomparable advantages especially in the separation of sticky and fine materials.

Characteristics of the equipment

The motor drives the reducer, and the pressure plate is pressed by the transmission parts. The tight screw and fixed nut design have reliable self-locking spiral Angle, which can guarantee the reliability and stability of compaction. According to customers' requirements, automatic pressure, automatic drawing, backwashing and other functions can be used to protect the motor from overheating and overload.

Technical parameters of plate-frame filter press

Equipment Model: X(B)M A	filter area(㎡)	Number of filter plates (pieces)	Equipment dimensions (M)	Equipment Model: X(B)M A	filter area(㎡)	Number of filter plates (pieces)	Equipment dimensions (M)
S1/450	1	4	1.17×0.72×0.66	S40/630	40	64	4.93×0.83×0.84
S2/450	2	8	1.39×0.72×0.66	S40/870	40	31	3.85×1.36×1.28
S5/450	5	20	2.05×0.72×0.66	S50/870	50	39	4.33×1.36×1.28
S10/630	10	16	2.39×0.83×0.84	S60/870	60	46	4.75×1.36×1.28
S15/630	15	24	2.73×0.83×0.84	S70/870	70	54	5.23×1.36×1.28
S20/630	20	32	3.17×0.83×0.84	S80/870	80	62	5.71×1.36×1.28
S25/630	25	40	3.61×0.83×0.84	S90/870	90	70	6.19×1.36×1.28
S30/630	30	48	4.05×0.83×0.84	S100/1000	100	62	6.64×1.50×1.46
S35/630	35	56	4.49×0.83×0.84	S120/1000	120	75	7.10×1.50×1.46
S35/630	35	56	4.49×0.83×0.84	S120/1000	120	75	7.10×1.50×1.46
